Continuous Caster: The continuous casters independently designed, manufactured, installed and commissioned by Zhuoshen Co.,Ltd. has reliable quality, advanced and mature technology and can be put into production within the shortest time.Until now, we have manufactured about 200 sets and successfully exported the caster products to overseas market such as Indonesia, South Africa, India, Bulgaria, Greece, Kenya, etc.. The twin-roll continuous caster can produce with thickness 6~10mm and width Max.2200mm. The rolling speed is 900~2000mm/min, It has the feature of small investment, short construction period and quick yield returns.
Main Technical Data
| Item | Description | Technical Data |
|---|---|---|
| Mill data | Material | Series1000、3000、5000、8000 |
| Product thickness mm | 5～10 | |
| Product width mm | 900～2000 | |
| Length of roll surface mm | 1400～2400 | |
| Coil weight kg | Max 20000 | |
| Casting speed mm/min | 900～2000 | |
| Max.speed mm/min | 3000 | |
| Electric control system | ABB、Siemens | |
| Typical mill type |
Φ650～700×1400～1600 Φ800～850×1500～1700 Φ960×1600～1850 Φ1000～1150×1800～2400 |
|
|
|
|

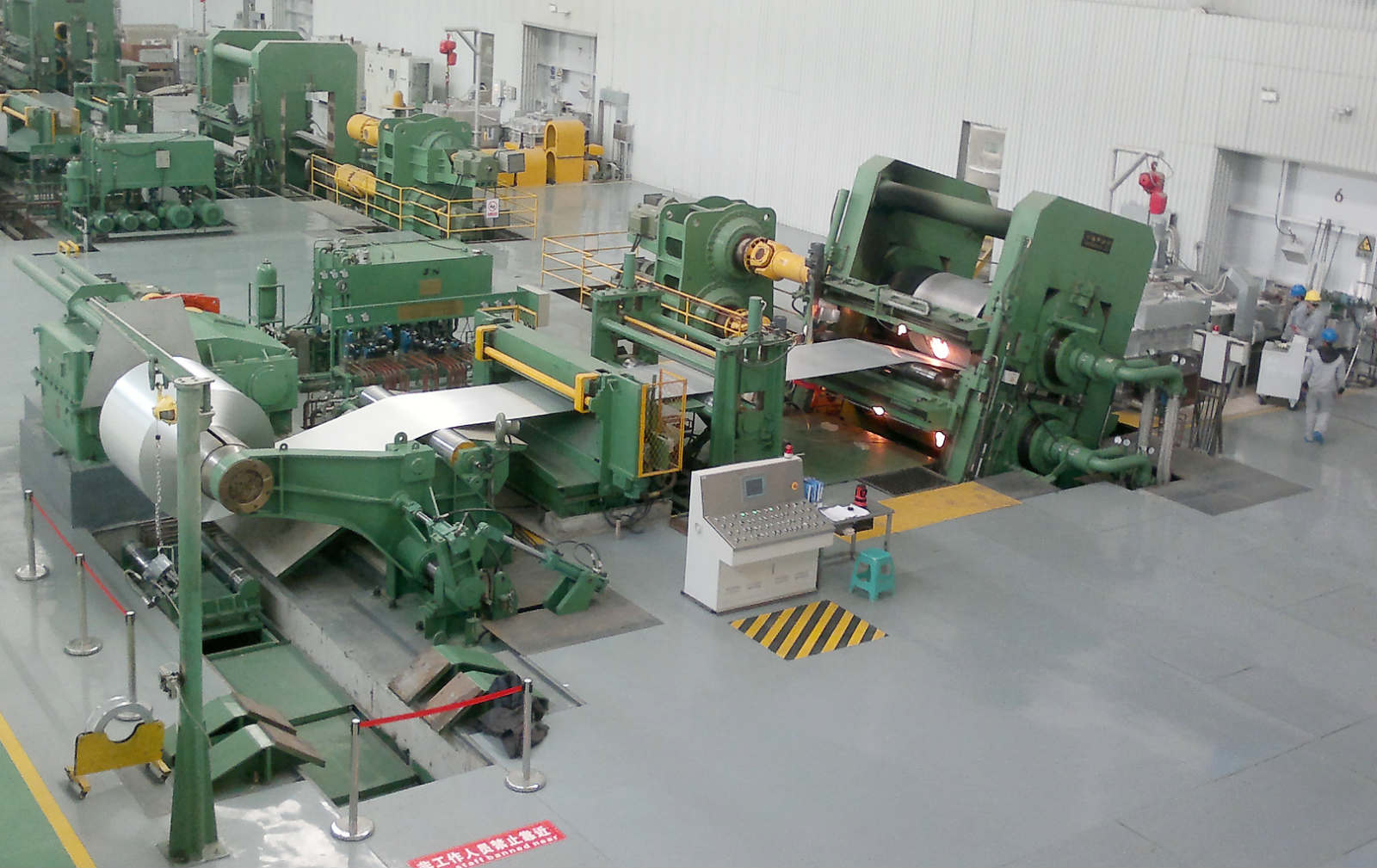

2200mm Tilting continuous caster |

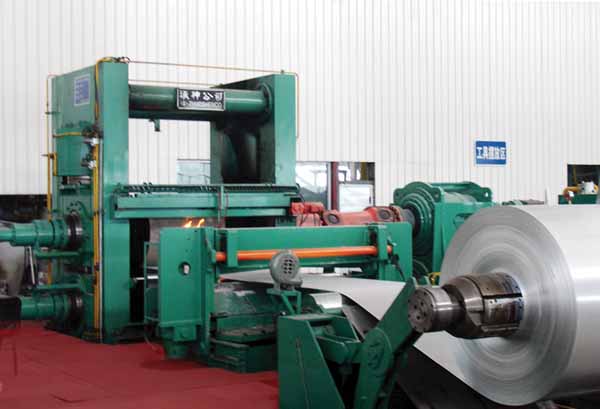

2300mmTilting Double-Driven Caster |
|
|
|
|

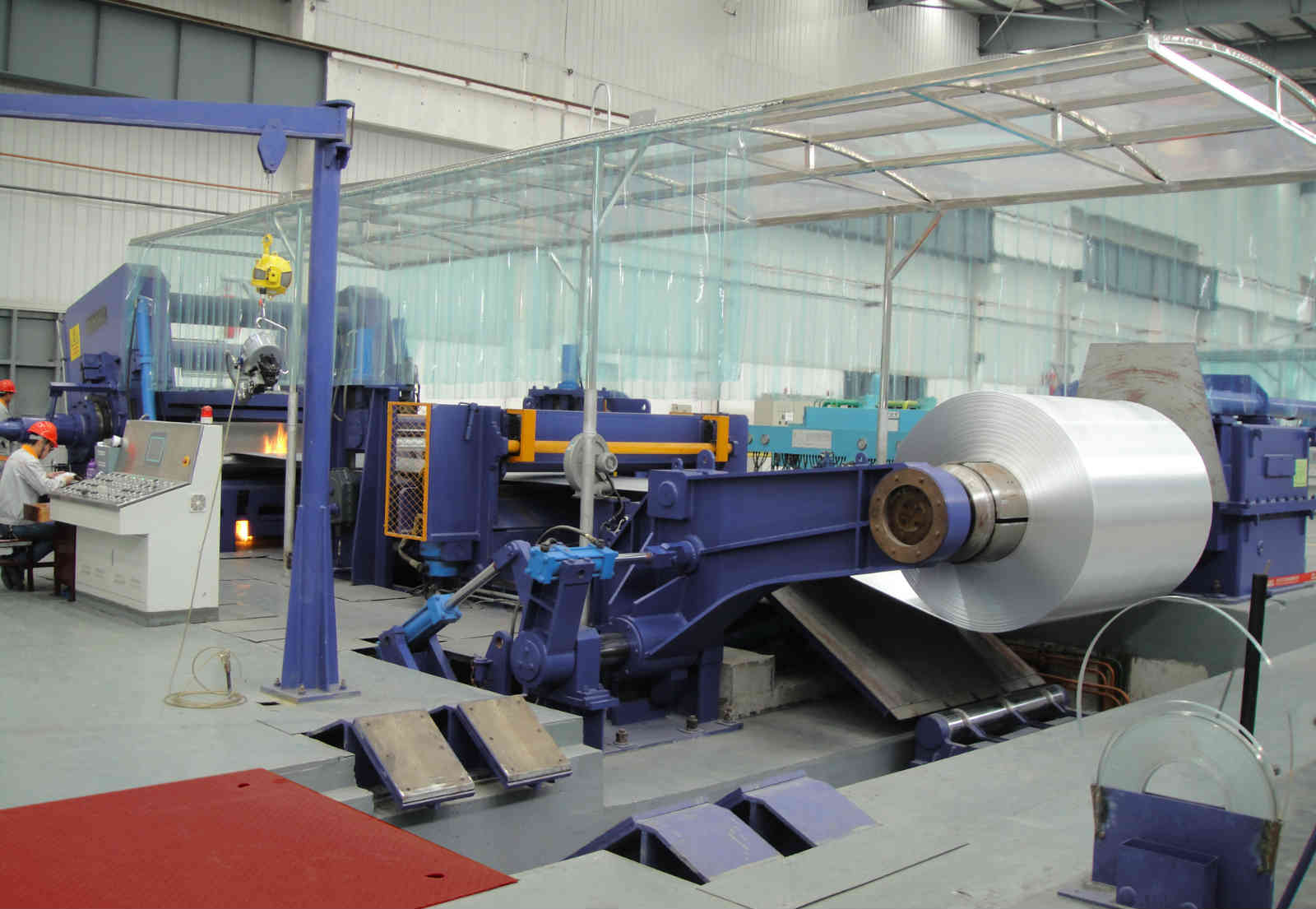

2000mm Horizontal Double-Driven Caster |

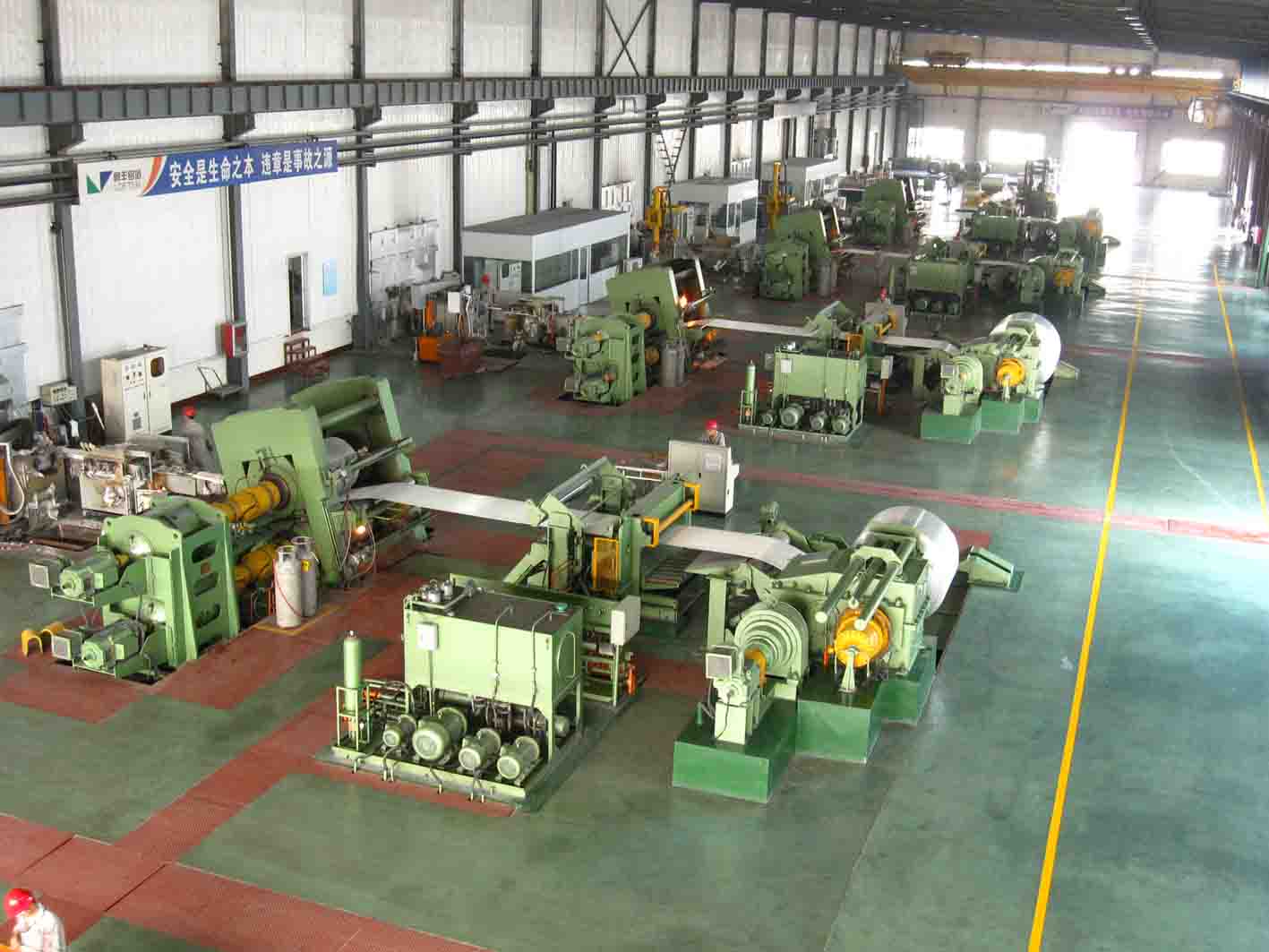

Full view of Caster workshop |
|
|
|
|
Patent certificates(5 patents obtained) |
Patent certificates(5 patents obtained) |
